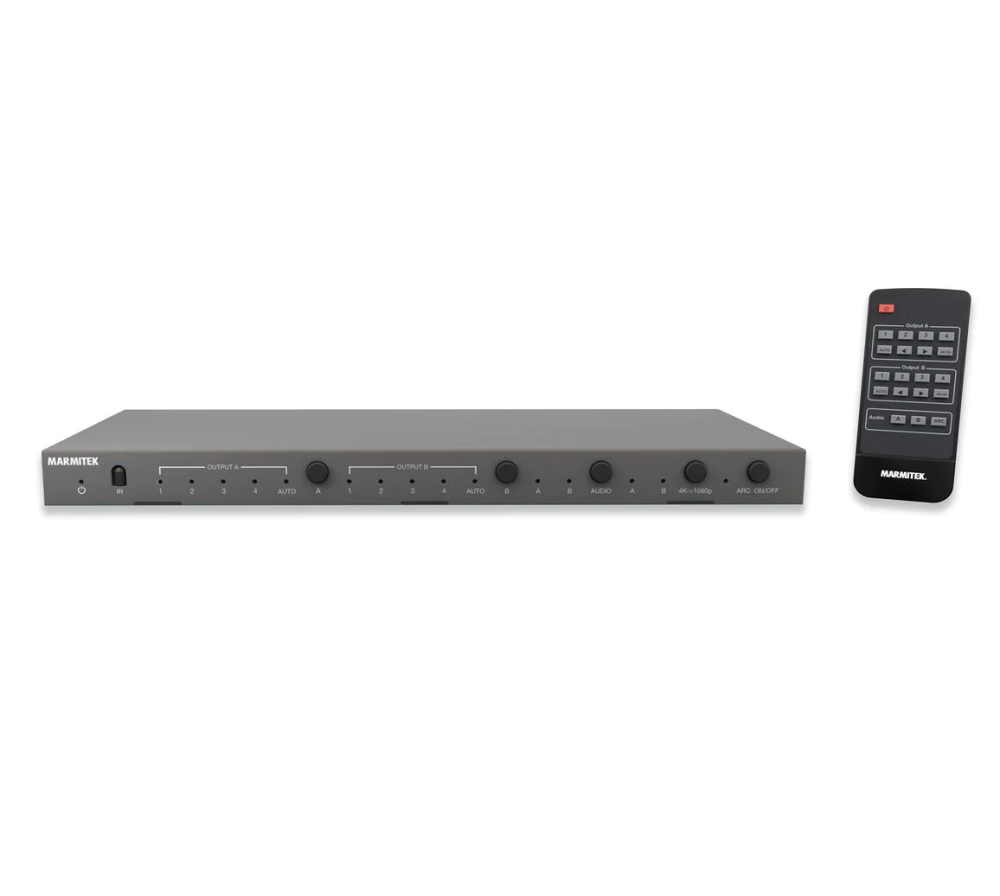

Marmitek HDMI switch - matrix - 4 in / 2 out - 4K60 (4:4:4) UHD - HDCP 2.2 - digital audio output
Varenummer
25208386
Marmitek HDMI switch - matrix - 4 in / 2 out - 4K60 (4:4:4) UHD - HDCP 2.2 - digital audio output
Spørg på levering
Spørg for leverandørlager
Varenummer
25208386
Marmitek HDMI switch - matrix - 4 in / 2 out - 4K60 (4:4:4) UHD - HDCP 2.2 - digital audio output
With this HDMI switch matrix 4K, you can connect 4 HDMI devices to 2 different TVs. Watch a different or the same image on 2 screens independently of each other. The remote control is used to switch between connected HDMI sources. The Connect 642 Pro supports resolutions up to 4K60 (4:4:4) and HDCP 2.2 and is therefore suitable for connection to your Ultra HD TV(s).
Connections |
|
| AV input | 4 x HDMI |
| AV output | 2 x HDMI |
| Digital audio output | 1x Toslink (optical) |
Video |
|
| Video resolution | Max. 4K60 (3840 x 2160@60 Hz) |
| PC resolution | Max. 2560 x 2048 Hz |
| Video bandwidth | 18 Gbps |
| Clock frequency | Max. 600 MHz |
| HDMI standard | HDMI, EDID, DVI, Deep Color 36 bit, x.v. Colour and 3D formats |
| HDCP standard | HDCP 2.2 |
| Colour formats | RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2 |
| Colour depth | Max. 36 bit |
Audio |
|
| HDMI audio | DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3, DTS 5.1 and PCM stereo |
| Optical Audio | Dolby Digital/AC3, DTS 5.1 and PCM stereo |
General |
|
| Dimensions (h x w x d) | 18 x 242 x 104 mm |
| Weight | 620grams |
| Power | 100-240 VAC 50/60 Hz, 12 VDC adapter |
