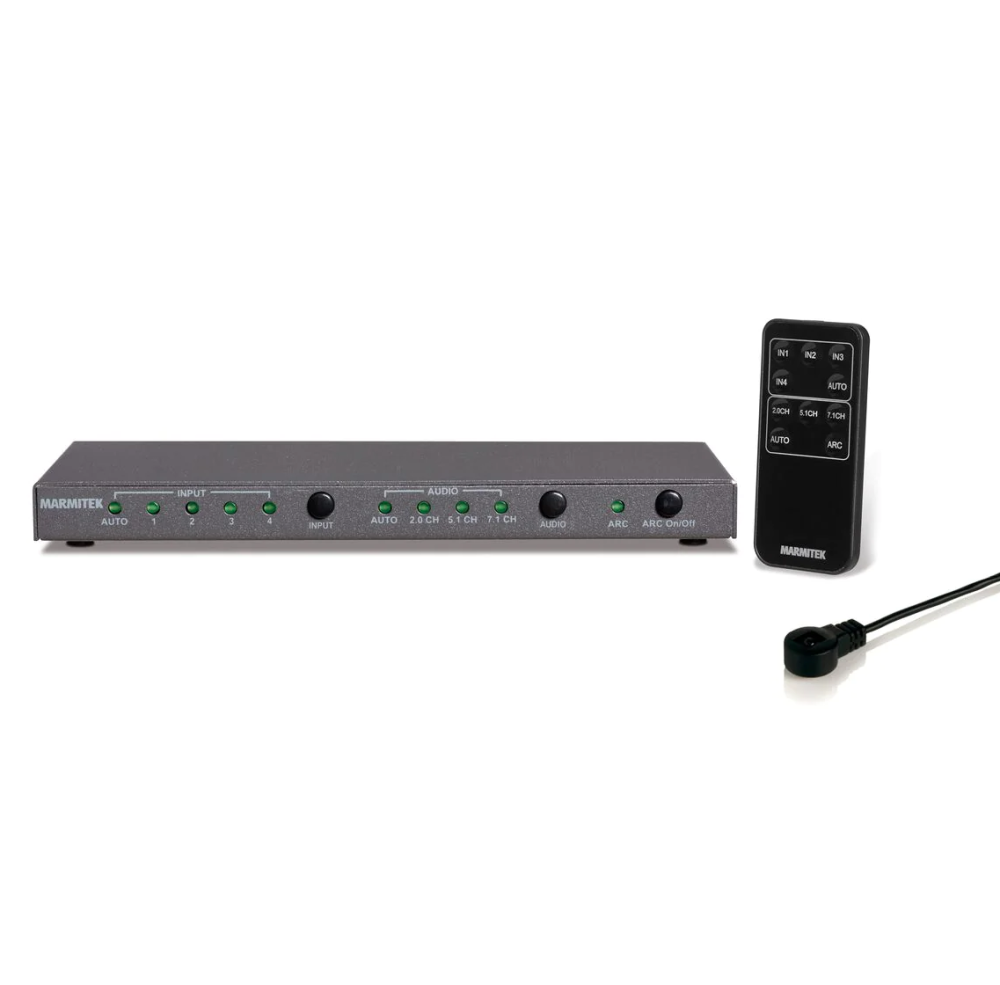

Marmitek HDMI switch - 4 in / 1 out - 4K60 (4:4:4) UHD - HDCP 2.2 - digital audio output
Varenummer
25008327
Marmitek HDMI switch - 4 in / 1 out - 4K60 (4:4:4) UHD - HDCP 2.2 - digital audio output
Spørg på levering
Spørg for leverandørlager
Varenummer
25008327
Marmitek HDMI switch - 4 in / 1 out - 4K60 (4:4:4) UHD - HDCP 2.2 - digital audio output
With this HDMI switch 4K, you can connect up to 4 devices to the HDMI input on a TV or beamer with just one cable. The Connect 621 UHD 2.0 has an additional digital audio output for connecting an AV receiver with a single cable. Select the desired audio format (2.0 / 5.1 / 7.1). Includes separate infrared receiver to control the HDMI switch 4K when it is out of the line of sight. Supports ARC to prevent lip-sync problems.
Connections |
|
| AV input | 4 x HDMI |
| AV output | 1 x HDMI |
| Digital audio output | 1 x Toslink (optical) |
| Analogue audio output | 1 x Stereo 3.5 mm jack |
| RS-232 | 1 x 3.5 mm |
Video |
|
| Video resolution | Max. 2160@60Hz |
| 3D formats | All 3D formats |
| PC resolution | Max. 2560 x 2048 Hz |
| Video bandwidth | 18 Gbps |
| Clock frequency | Max. 600 MHz |
| HDMI standard | HDMI 2.0b, HDR, CEC, EDID, DVI, Deep Color 36-bit and all 3D formats |
| HDCP standard | HDCP 1.4/2.2 |
| Colour formats | RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2 |
| Colour depth | Max. 36-bit |
Audio |
|
| HDMI audio | DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3, DTS 5.1 and PCM stereo |
General |
|
| Dimensions (h x w x d) | 21 x 182 x 85 mm |
| Weight | 366 grams |
| Ambient temperature | +0 to +40 °C |
| Humidity | 20% to 90% |
| Power | 100-240 VAC 50/60 Hz, 5 VDC adapter |
