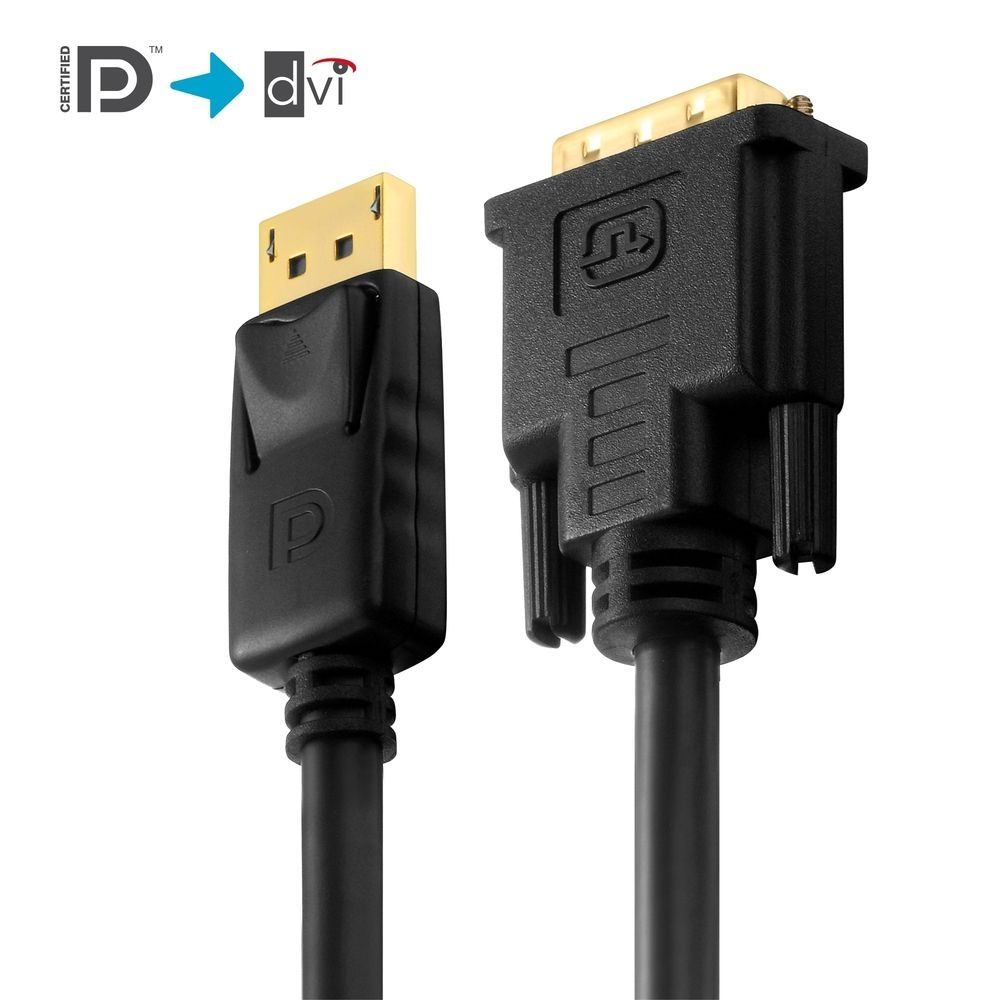

PureLink Certified Active 2K DisplayPort / DVI Cable – 10.00m
Varenummer
PI5200-100
PureLink Certified Active 2K DisplayPort / DVI Cable – 10.00m
Spørg på levering
Spørg for leverandørlager
Varenummer
PI5200-100
| Connections | |
| Connector material | PVC |
| Contact material | 24 ct. gold plated, long-life design |
| Shielding | Yes |
| Connector 1 | DisplayPort male (20pin) |
| Connector 2 | DVI-D male (18+1pin) |
| Dimensions Con.1 | 53,0 x 20,0 x 11,0 (mm) |
| Dimensions Con.2 | 47,7 x 37,7 x 15,8 (mm) |
| Contacts | 24 ct. gold plated, long-life design |
| Electric signal | |
| Maximum pixel clock / bandwidth | WUXGA (1920x1200) |
| HDCP | Yes |
| EDID | Yes |
| Cable | |
| Type | Round cable |
| Lenght | 10.0 meters |
| Inner conductor material | Tinned OFC copper |
| AWG | AWG28 |
| Number of shieldings | 3 |
| Shielding 1 | Aluminium foil (100% density) |
| Shielding 3 | Mesh (100% density) |
| Outer material | Elastic PVC |
| Outer diameter | 7,3mm |
| Signal transmission | |
| Supported standards | DisplayPort, DVI |
| Transmission modes | Digital video signals |
| Supported Colors | RGB/YUV, Deep Color, x.v.Color™ |
| Supported audio standards | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD |
| Further standards | HDCP, CEC, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p) |
| Weiteres | |
| Safety | CE (incl. RoHS), FCC |
| Colour | black |
| Warranty | 3 Years Manufacturer's Warranty |
