POWERCORD CEE 7/7-C15 RD 1.00M
Varenummer
AK5314

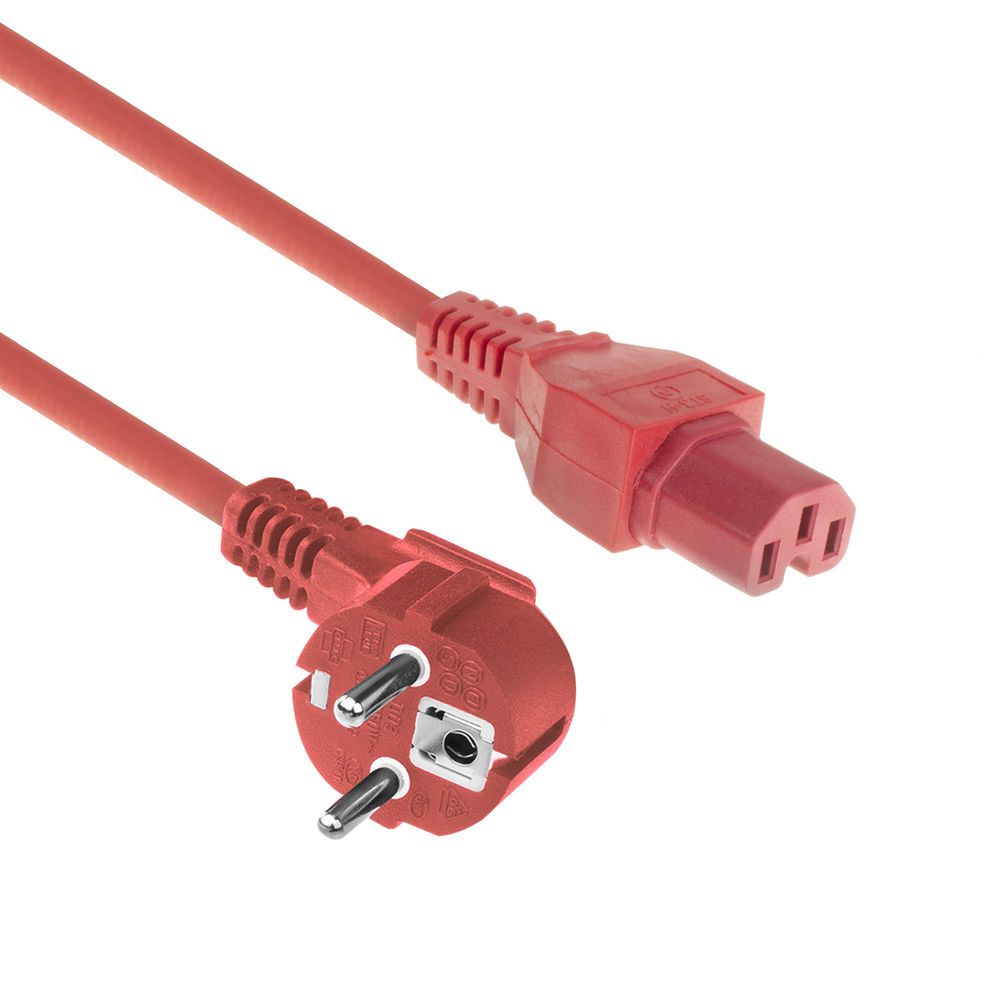

ACT Powercord mains connector CEE 7/7 male (angled) - C15 red 1 m
Spørg på levering
706 stk. på producent lager – 2 – 4 dages levering
Varenummer
AK5314
Description
- Cable length: 1 m
- Connectors: Schuko CEE 7/7 male (angled) - C15 IEC 60320
- Maximum load: 230V / 10A
- Color: red
- Suitable for servers, network switches; e.g. HP and Cisco
The CEE 7/7 to C15 powercord is often used where a higher temperature is expected at the equipment side. This cable is also regulary used for powering network switches.
ACT provides many types of power cables: CEE 7/7, Euro, UK, USA, Italian, Danish, Swiss and Indian/South African cables. ACT supplies powercables with the following connectors: CEE 7/7, IEC60320 C5, C7, C13, C14, C19, C20 and IEC60309 CEE1. ACT offers different types of power split cables and power cables in the following colors: black, white, red, blue, green and yellow.
ACT provides many types of power cables: CEE 7/7, Euro, UK, USA, Italian, Danish, Swiss and Indian/South African cables. ACT supplies powercables with the following connectors: CEE 7/7, IEC60320 C5, C7, C13, C14, C19, C20 and IEC60309 CEE1. ACT offers different types of power split cables and power cables in the following colors: black, white, red, blue, green and yellow.
Specifications
- Product category
- Cables / Power / Type F
- Cable length
- 1 m
- Connector type
- C15, CEE7/7
- Connector A
- CEE 7/7 angled male (Max 70°C) (x1)
- Connector B
- IEC 60320 C15 straight female (Max 120°C) (x1)
- Conductor material
- Copper
- Number of wires
- 3
- Wire gauge (mm²)
- 0.75 mm²
- Outer jacket
- Neoprene
- Cable colour
- Red
- Colour number
- RAL 3031
- Rated current
- 10 A
- Rated voltage
- 250 V
- Min. working temperature
- -35 °C
- Max.working temperature
- 70 °C
- Approval
- CE, VDE
- Warranty (years)
- 5
- EAN code
- 8716065519051
