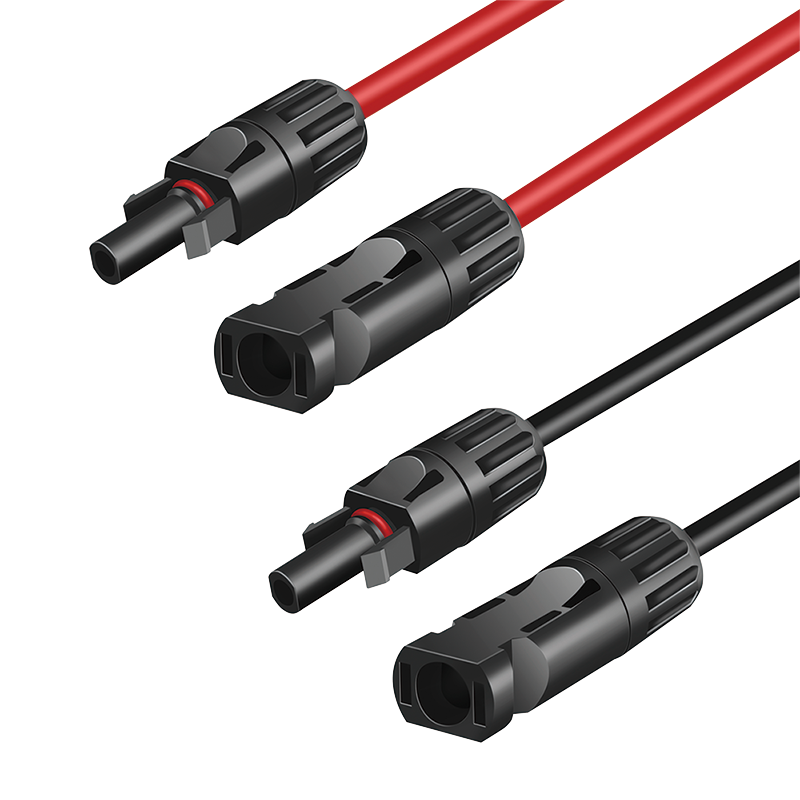

Solar extension cable set, 5 m, MC4/M to MC4/F, 6 mm², CU

The MC4 solar extension cables from LogiLink are ideally suited to connect PV panels to the Micro Inverter, since, for example, when using several panels for a photovoltaic balcony power plant (PV/solar system), the existing connection cables are often not long enough. The certified and tested cables offer good electrical conductivity, are UV as well as weather resistant and ensure good fire protection due to used flame retardant materials. In the double pack (2x cable) for the plus and minus connection, nothing stands in the way of a carefree installation.

• Connector 1: MC4 connector (male)
• Connector 2: MC4 connector (female)
• Set of 2 cables for connection to plus and minus pole
• Conform with IEC 60332-1-2
• Protection class: IP67 ; Flame class: UL94V-0
• Rated voltage: 1000 V ; Rated current: 30 A (DC)
• Temperature range of work environment: -40 °C to 85 °C
• Wire cross section: 6 mm² ; Wire material: Copper
• Plastic housing
• Color: Black & red
• Cable length: 5 m
• Packaging: PE Bag
