KEYSTONE SHIELD C6 TOOLFR CAP
Varenummer
TD6025

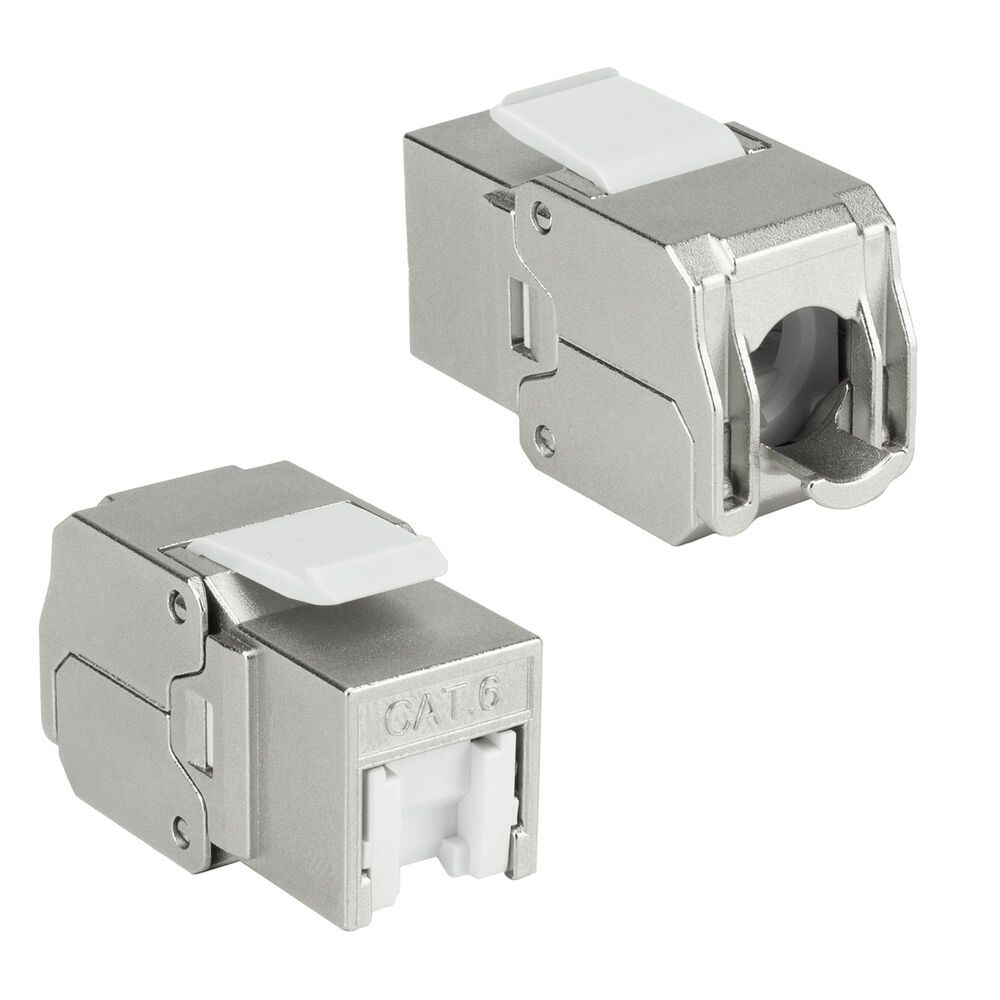

ACT Keystone Jack RJ45 CAT6 Shielded toolless with shutter
Spørg på levering
1142 stk. på producent lager – 2 – 4 dages levering
Varenummer
TD6025
Description
- Metal keystone jack CAT6 shielded with shutter for dust protection
- Toolless installation: no punch down tool needed
- Fitting High Density keystone panels
- For solid and stranded cables with an outer diameter of 5.0 - 8.5mm and AWG 23 - 26
- Suitable for 4PPoE 100W
- 50µ gold-plated contacts
- Colour-coded for T568A and T568B wiring schemes
The TD6025 Shielded Keystone Jack RJ45 CAT6 provides a solution for connecting solid or stranded cables with an outer diameter of 5.0 - 8.5mm and 23 - 26 AWG wires in a patch panel. The keystone jack has a white dust cover/shutter to protect the 50µ gold-plated contacts from dust. LSA tool free installation and colour-coded T568A and T568B wiring schemes ensure easy assembly. Additionally, the keystone jack can handle PoE++ 100W (type 4). The enclosed zip-tie is used as strain relief.
Use this compact ACT toolless RJ45 keystone jack in a high density patch panel or wall outlet. The keystone is also suitable for standard patch panels.
Use this compact ACT toolless RJ45 keystone jack in a high density patch panel or wall outlet. The keystone is also suitable for standard patch panels.
Specifications
- Product category
- Connectors / Keystone jacks
- Connector type
- RJ45
- Termination type
- IDC
- Cable mounting
- Straight
- Housing material
- Metal
- Shielded
- Yes
- Category
- CAT6
- Min. wire gauge
- 26 AWG
- Max. wire gauge
- 23 AWG
- Compatible wire type
- Solid, Stranded (litze)
- Warranty (years)
- 5
- EAN code
- 8716065532173
