HDMI matrix switch 4x2-Port, 4K/60 Hz, HDR, ARC, extract, scaler, RC

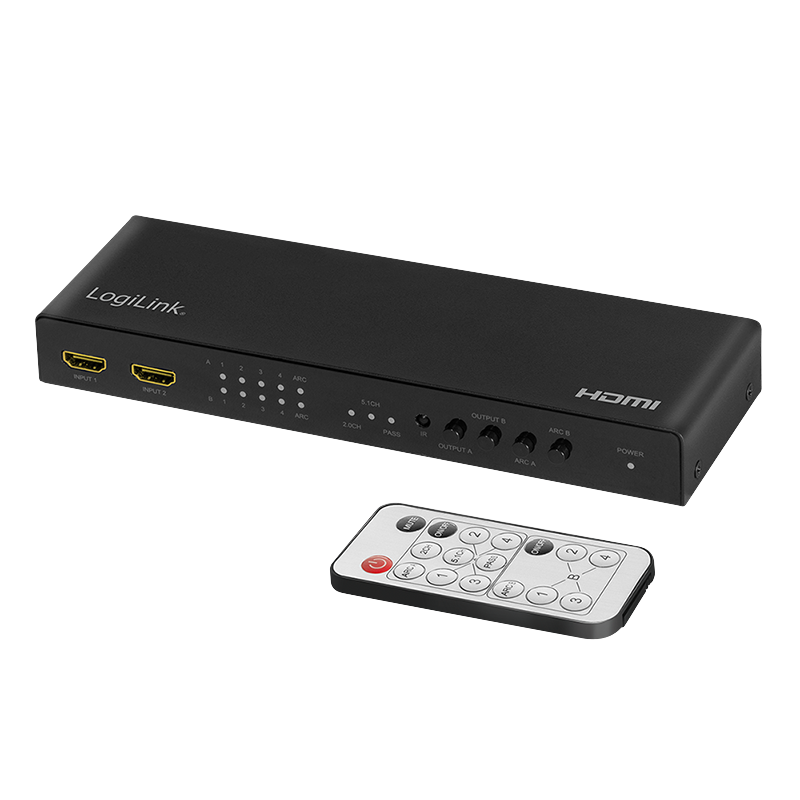

The LogiLink 4K HDMI matrix switch combines the advantages of a simple HDMI switch and a HDMI splitter. It routes one or two HDMI video signals from four selectable input signals to one or two selectable HDMI displays each. Control the unit remotely for maximum flexibility for all connected systems. All inputs are suitable for HD video sources such as video camera, HD DVD, receiver, set-top boxes, game consoles, etc. Thanks to Ultra HD (4K/60 Hz) experience media content in brilliantly sharp resolution. The integrated downscaler function supports the display of 4K content on Full HD displays, in addition, both 4K and Full HD displays can be operated simultaneously with support for HDCP 2.2, HDR, CEC as well as 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD as well as the connection of an external AV receiver (ARC), also leaves nothing to be desired.
- Allow any A/V source to be displayed on multiple displays at the same time
- The Matrix switching functionality gives you full control of the video source displayed on each monitor
- Compliant to HDMI 2.0 with a bandwidth of 6.0 Gbit/s at 600 MHz per channel (18 Gbit/s total) and HDCP 2.2
- Connection In: 4x HDMI-A, DC Power; Connection Out: 2x HDMI-A, 2x Coaxial, 2x SPDIF (Toslink), 2x 3.5 mm stereo
- Supports Ultra HD 4K/60 Hz (YUV 4:4:4) with 36 bit Deep Color (12 bit per channel) and Full 3D
- Power supply unit: DC 5 V/2 A
- Supports DDC, HDR, CEC, ARC and Downscaler function
- Supports dual-way ARC and audio extractor for both output A and output B
- Support uncompressed audio such as LPCM7.1
- Supported audio data: HDMI: DTS-HD Master Audio™, Dolby TrueHD; SPDIF: Coaxial:DTS/Dolby Digital; Coaxial: DTS/Dolby Digital
- Supports audio output over 3.5 mm stereo, Toslink and Coaxial simultaneously or selectable via IR remote control
- Metal chassis
