CAT6A F/UTP AWG23 SOLID 305M B2ca, s2, d1
Varenummer
XS6120

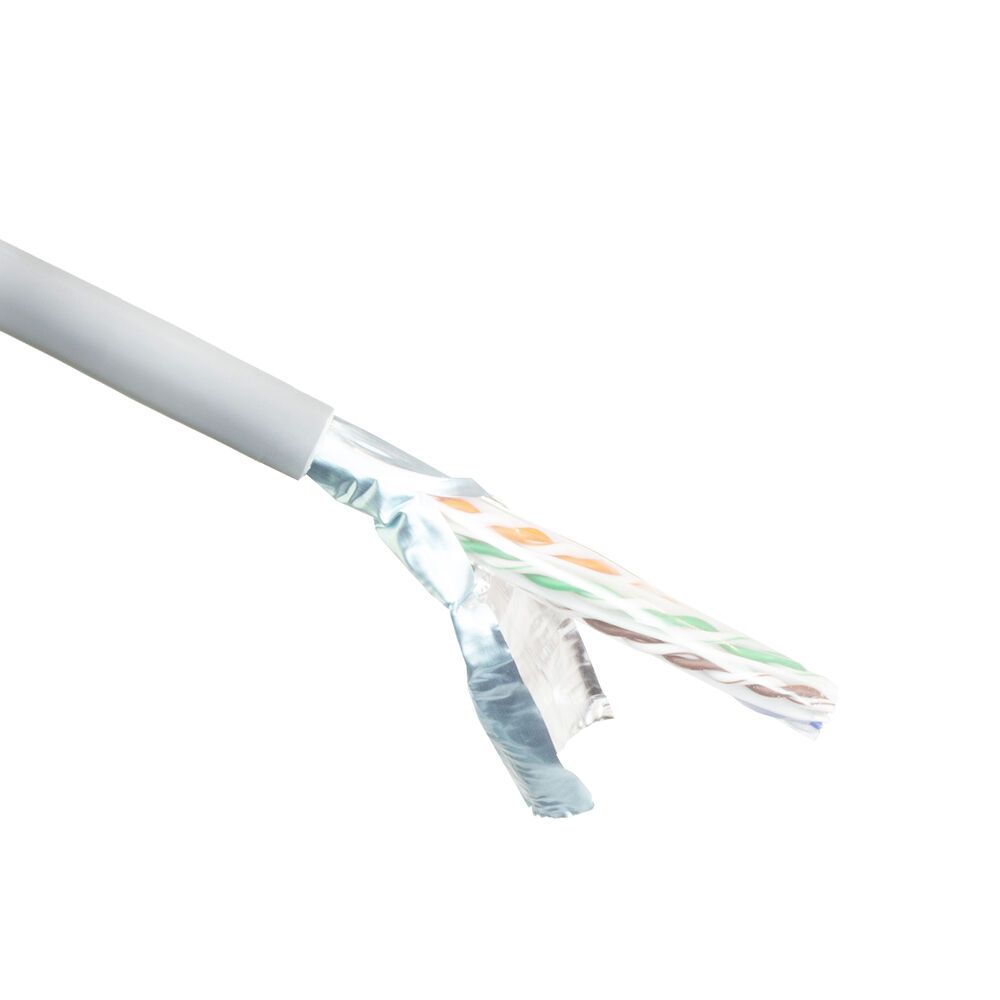

ACT CAT6A F/UTP solid twisted pair cable, PVC, AWG 23, CPR: B2ca, 305 m
Spørg på levering
4 stk. på producent lager – 2 – 4 dages levering
Varenummer
XS6120
Description
Reel 305 mtr
- This cable is conform CPR Euroclass: B2ca-s1a,d0,a1
- Full copper conductors and comply with the ANSI/TIA-568.2-D performance requirements
- With pair Splitter
- Specifications comply to international standards
This cable is conform CPR Euroclass: B2ca-s1a,d0,a1
DoP number: HY22SSP8 001 / XS6120-CPR
Permanent twisted pair cabling also known as vertical or horizontal cabling is used above ceilings and in cable ducts and connects to the wall outlet at the work space. From the outlet patchcables are used to connect to the notebook, docking station or pc.
Permanent cabling is typically installed by installers and because of that you can also see the term installation cable used.
Permanent cabling contains more copper then patchcables / patchcords and because of this is excellent for bridging longer distances. Because of the usage of more copper in a solid wire permanent cabling is also know as solid cabling. Solid / permanent cables are less flexible then patchcables, patchcables are also known as zipcords.
DoP number: HY22SSP8 001 / XS6120-CPR
Permanent twisted pair cabling also known as vertical or horizontal cabling is used above ceilings and in cable ducts and connects to the wall outlet at the work space. From the outlet patchcables are used to connect to the notebook, docking station or pc.
Permanent cabling is typically installed by installers and because of that you can also see the term installation cable used.
Permanent cabling contains more copper then patchcables / patchcords and because of this is excellent for bridging longer distances. Because of the usage of more copper in a solid wire permanent cabling is also know as solid cabling. Solid / permanent cables are less flexible then patchcables, patchcables are also known as zipcords.
Specifications
- Product category
- Cable reels
- Length per packaging
- 305 m
- Shielding type
- F/UTP
- Category
- CAT6A
- Conductor material
- Copper
- Conductor type
- Solid
- Wire gauge
- 23 AWG
- Outer jacket
- LSZH
- Outer diameter
- 7.8 mm
- Impedance
- 100 ?
- Bandwidth
- 500 MHz
- Cable colour
- Grey
- Colour number
- RAL 7047
- Min. working temperature
- -20 °C
- Max.working temperature
- 75 °C
- CPR compatible
- Yes
- CPR Euroclass
- Bca
- Approval
- UL
- Warranty (years)
- 5
- EAN code
- 8716065410990
