HDMI Amplifier Extender HDBaseT

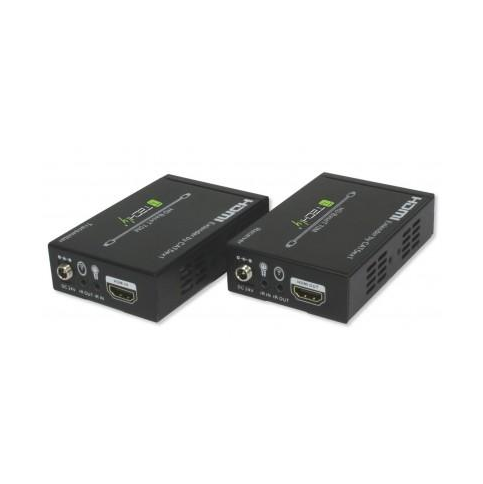

The extender IDATA EXT-E70-4K is a device that extends the HDMI signal from a compatible screen up to 70metri. It 'was designed to convert an HDMI signal into a standard signal HD BaseT that can be transferred via LAN cable. Together with the HDMI signal is also able to support the bidirectional infrared control, for the remote control of devices from both the source position than the screen.
The POE (Power Over Ethernet) is supported by both the transmitter and the receiver, so if one of the two runs on 24V @ 1A, the other does not need power supply from the DC power outlet.
It allows to reach long distances transmission by simply using a single LAN UTP cable (CAT-5E / 6) instead of expensive HDMI cables.

Technical Specifications

• The receiver and transmitter support the PoE function
• Power consumption less than 10W POE
• Frequency band 297MHz 10.2Gbps
• Entrance doors / Transmitter Output: 1 port HDMI Female / 1xCAT6 1x IR Tx / Rx 1x IR
• Entrance doors / receiver output: 1porta HDMI Female / 1xCAT6 1x IR Tx / Rx 1x IR
• Power Supply DC 24V 1A
• ± 8kV ESD protection (air-gap discharge)
• Human Body Model: ± 4 kV (contact discharge)
• Consumption (Max): 10W

Transmission Distance on CAT6 Cable

• 70 meters: 1080P @ 60Hz36bit; 3D1080P @ 30Hz36bit
• 40 meters: 1080P @ 60Hz @ 48bit; 1080P @ 120Hz @ 24bit; 3D1080P @ 60Hz @ 36bit; 4K x 2K @ 30Hz @ 24bit

Environmental Features

• Operating temperatures: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Relative Humidity: 20 ~ 90% RH (non-condensing)

Dimensions

• Width: 65 mm
• Depth: 115 mm
• Height: 17 mm
• Weight: 200g x 2

Certifications

• EC
• WEEE

Package Contents

• 1x HDMI Extender Transmitter
• 1x HDMI Extender Receiver
• 2x IR transmitter broadband
• 2x IR Receiver broadband
• 1x DC Power Supply 24V1A
• 1x Instruction Manual

• 4x Rack-mount brackets
