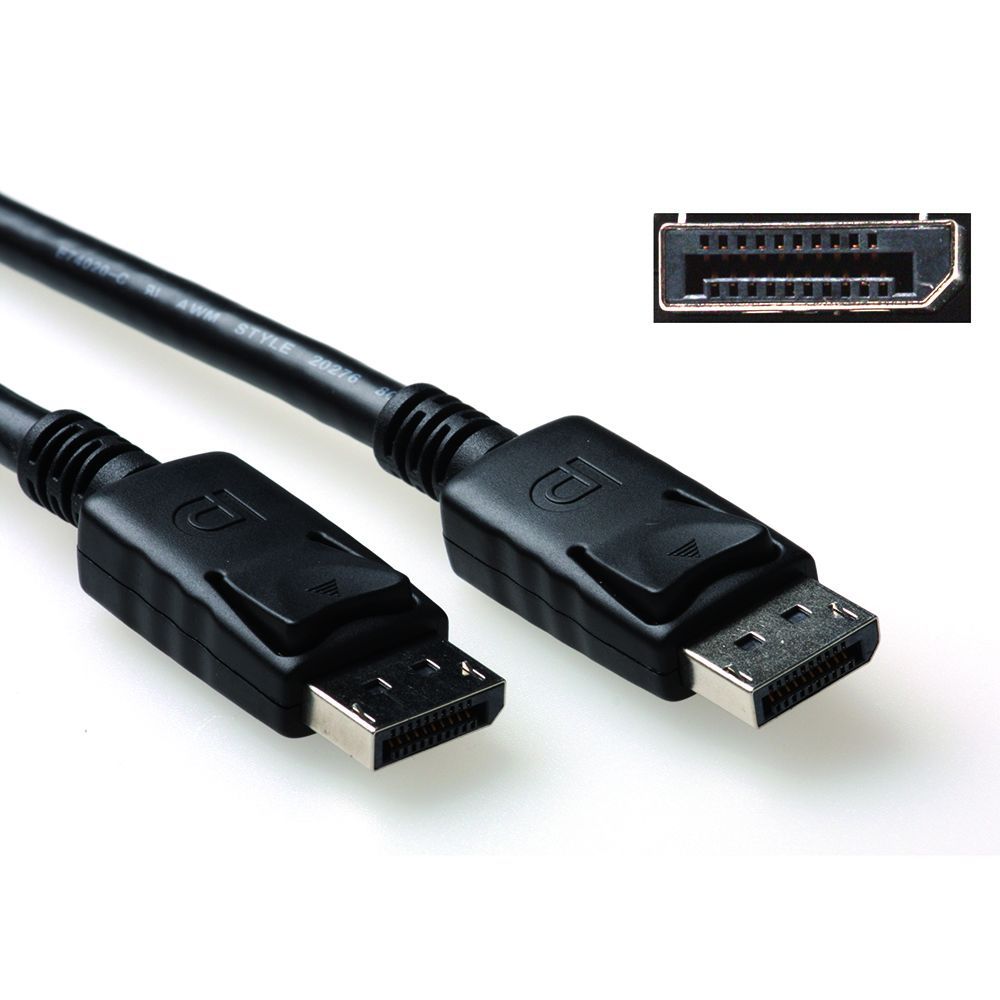

ACT DISPLAY PORT M/M CABLE 0.50M
Varenummer
AK3977
ACT 50 cm DisplayPort cable male - male, power pin 20 connected.
8 stk. på eget lager - 1 - 2 dages levering
386 stk. på producent lager – 2 – 4 dages levering
Varenummer
AK3977
ACT 50 cm DisplayPort cable male - male, power pin 20 connected.
- For resolutions up to 4K@60Hz
- All pins connected include power pin 20
- For applications where DisplayPort power is needed like not external powered converters
DisplayPort cables to which power pin 20 is connected are suitable for connecting converters that are not externally powered, but which require power via the DisplayPort connector. These cables are sometimes also needed for High Bit Rate resolutions.
| Cable length | 0.5 m |
| Connector type | DisplayPort |
| Connector A | DisplayPort male (x1) |
| Connector B | DisplayPort male (x1) |
| Hoods | Molded plastic |
| Locking | Snap-in |
| Shielding type | 85% braid, Aluminum Mylar |
| Conductor material | Copper |
| Wire gauge | 30 AWG |
| Outer jacket | PVC |
| Cable colour | Black |
| 4K compatible | Yes |
| Max. resolution @ 30Hz | 2160p |
| Max. resolution @ 60Hz | 2160p |
| Video signal | DisplayPort |
| Video specification | DisplayPort 1.2 |
| Warranty (years) | 5 |
| EAN code | 8716065328523 |
