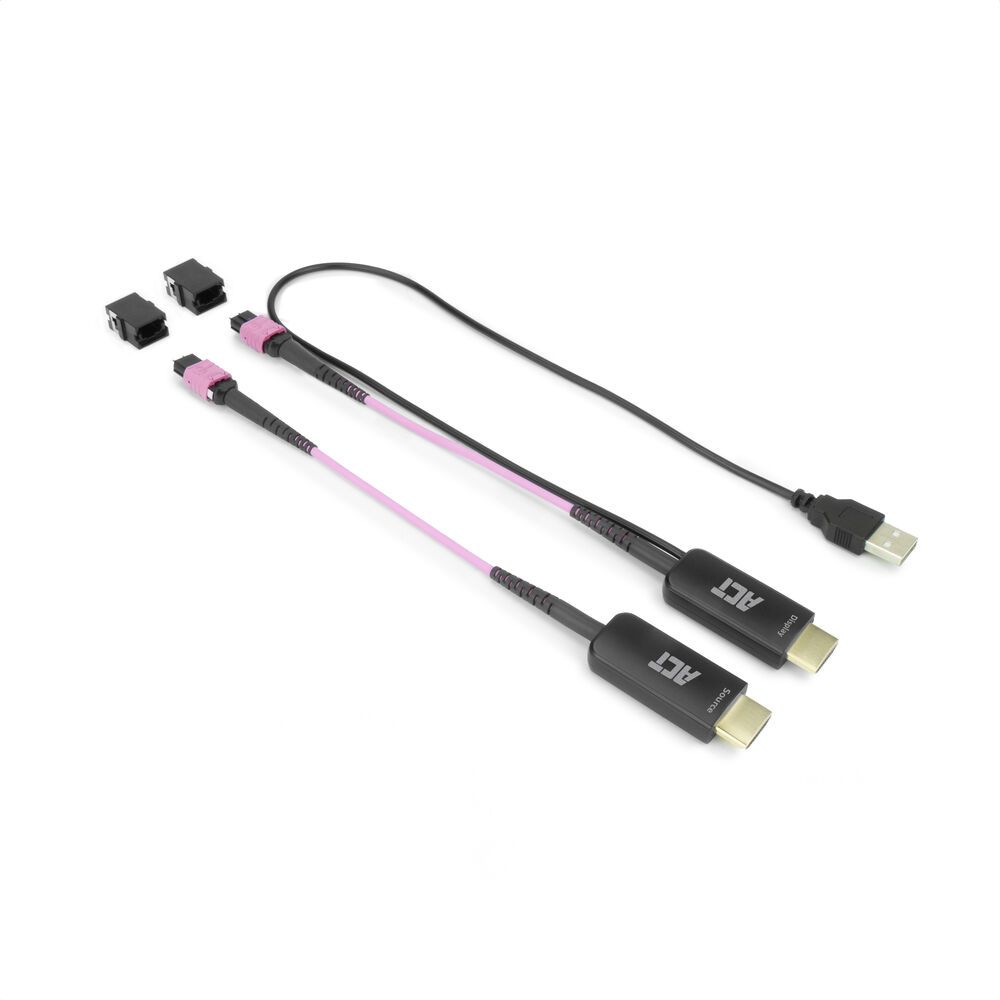

ACT HDMI 8K MPO ADAPTER POL. B
Varenummer
AK4135
ACT HDMI 8K MPO ADAPTER POL. B
Spørg på levering
3 stk. på producent lager – 2 – 4 dages levering
Varenummer
AK4135
Description
HDMI 2.1 | 8K@60Hz | 48Gbps | polarity B | OM3 | OM4 | LSZH
- Extend an 8K HDMI connection up to 300 meters
- Suited for use with MTP/MPO OM3/OM4 fiber cable with polarity B
- Max. resolution: 8K@60Hz / bandwidth 48Gbps / HDCP 2.3/HDR/4:4:4/CEC/EDID support
- Aluminium housing / gold-plated connectors / Kevlar protected fiber / LSZH cable jacket
- Including MTP/MPO couplers female - female
- TX and RX are easily exchangeable
- RX is USB powered
Extend an 8K HDMI signal over a distance up to 300 meters with the AK4135 HDMI to MTP/MPO adapter set. The adapter set is suited for use with OM3/OM4 MTP/MPO cables with polarity B. The transmitter (TX) and receiver (RX) units are easily exchangeable. Take advantage of the benefits of fiber optics.
Advantage of fiber optic
With an OM3/OM4 MTP/MPO cable the optimal signal, bandwidth and speed are maintained over the entire length of max. 300 meters (with OM4). The data and video is sent via fiber and is therefore not affected by Electromagnetic Interference or Radio Frequency Interference.
Flexible TX and RX placement
The transceiver (TX) and the receiver (RX) are easily exchangeable. There is no need to replace the complete cable. Just swap the source and display cable ends.
Also available
Besides the HDMI MTP/MPO adapter, there is also a DisplayPort adapter set available.
Advantage of fiber optic
With an OM3/OM4 MTP/MPO cable the optimal signal, bandwidth and speed are maintained over the entire length of max. 300 meters (with OM4). The data and video is sent via fiber and is therefore not affected by Electromagnetic Interference or Radio Frequency Interference.
Flexible TX and RX placement
The transceiver (TX) and the receiver (RX) are easily exchangeable. There is no need to replace the complete cable. Just swap the source and display cable ends.
Also available
Besides the HDMI MTP/MPO adapter, there is also a DisplayPort adapter set available.
Specifications
- Product category
- Cables / Video / HDMI
- Hoods
- Metal
- Conductor material
- Fiber
- Outer jacket
- LSZH
- Outer diameter
- 3 mm
- Cable colour
- Erika violet
- Connections
- HDMI
- Connections (in)
- HDMI A (full-size) female (x1)
- Connections (out)
- HDMI A (full-size) female (x1)
- Extender category
- 101-300 m
- Max. extension distance
- 300 m
- Max. extension distance (Full HD)
- 300 m
- Max. extension distance (4K)
- 300 m
- Max. extension distance (8K)
- 300 m
- Extension over
- Fiber
- Extension cable
- Fiber multi mode (x1)
- 4K compatible
- Yes
- 8K compatible
- Yes
- Max. resolution @ 30Hz
- 7680 x 4320
- Max. resolution @ 60Hz
- 7680 x 4320
- Chroma sampling
- 4:4:4
- Total bandwidth
- 48 Gb/s
- Loop-through
- No
- Video signal
- HDMI
- HDMI certified
- No
- Supported features
- ARC, CEC, DDC, Ethernet over HDMI, HDCP, eARC
- HDMI specification
- HDMI Ultra High Speed
- Power supply
- USB powered
- Included
- Two MPO adapters and caps
- HDMI version
- HDMI 2.1
- Audio formats
- all major Dolby formats, including Dolby Atmos (TrueHD & Digital Plus), Dolby TrueHD, and legacy formats like Dolby Digital.
- Warranty (years)
- 5
- EAN code
- 8716065539271
