ACT DP 8K MPO ADAPTER POL. B
Varenummer
AK4165
ACT DP 8K MPO ADAPTER POL. B
Spørg på levering
7 stk. på producent lager – 2 – 4 dages levering
Varenummer
AK4165
Description
DisplayPort 1.4 | 8K@60Hz | 32.4Gbps | polarity B | OM3 | OM4 | LSZH
- Extend an 8K DisplayPort connection up to 300 meters (OM4)
- Suited for use with MTP/MPO OM3/OM4 fiber cable with polarity B
- Max. resolution: 8K@60Hz / bandwidth 32.4Gbps / HDCP 2.3/HDR/4:4:4/CEC/EDID support
- Aluminium housing / gold-plated connectors / Kevlar protected fiber / LSZH cable jacket
- Including MTP/MPO couplers female - female
- TX and RX are easily exchangeable
- RX is USB powered

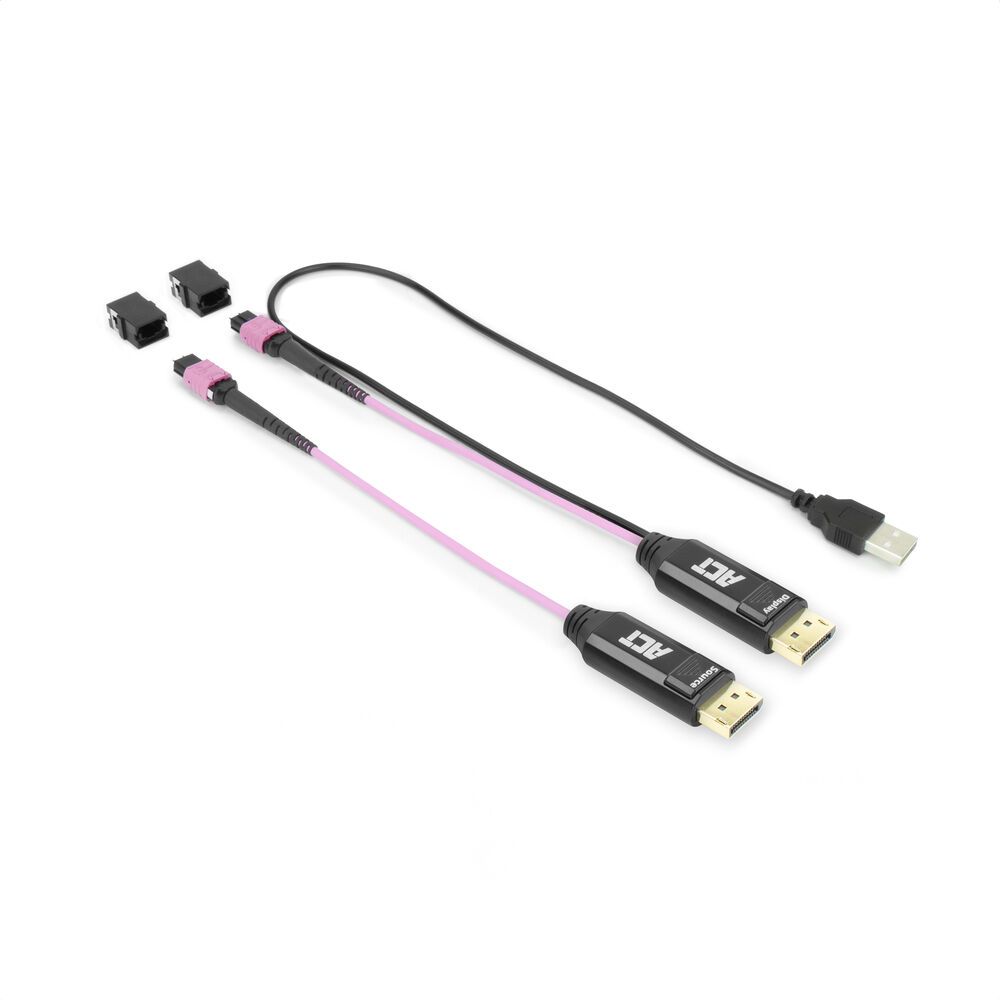

Extend an 8K DisplayPort signal over a distance up to 300 meters with the AK4165 DisplayPort to MTP/MPO adapter set. The adapter set is suited for use with OM3/OM4 MTP/MPO cables with polarity B. The transmitter (TX) and receiver (RX) units are easily exchangeable. Take advantage of the benefits of fiber optics.
Advantage of fiber optic
With an OM3/OM4 MTP/MPO cable the optimal signal, bandwidth and speed are maintained over the entire length of max. 300 meters (with OM4, max. 100m with OM3). The data and video is sent via fiber and is therefore not affected by Electromagnetic Interference or Radio
Frequency Interference.
Flexible TX and RX placement
The transceiver (TX) and the receiver (RX) are easily exchangeable. Instead of a standard uni-directional cable, the TX and RX can be used bidirectionally by only swapping the source and display cable ends instead of the complete cable.
Also available
Besides the DisplayPort MTP/MPO adapters, an HDMI adapter set is available as well.
Advantage of fiber optic
With an OM3/OM4 MTP/MPO cable the optimal signal, bandwidth and speed are maintained over the entire length of max. 300 meters (with OM4, max. 100m with OM3). The data and video is sent via fiber and is therefore not affected by Electromagnetic Interference or Radio
Frequency Interference.
Flexible TX and RX placement
The transceiver (TX) and the receiver (RX) are easily exchangeable. Instead of a standard uni-directional cable, the TX and RX can be used bidirectionally by only swapping the source and display cable ends instead of the complete cable.
Also available
Besides the DisplayPort MTP/MPO adapters, an HDMI adapter set is available as well.
Specifications
- Product category
- Cables / Video / DisplayPort
- Hoods
- Metal
- Locking
- Snap-in
- Conductor material
- Fiber
- Outer jacket
- LSZH
- Outer diameter
- 3 mm
- Cable colour
- Erika violet
- Connections (in)
- DisplayPort male (x1)
- Connections (out)
- DisplayPort male (x1)
- Extender category
- 101-300 m
- Max. extension distance
- 300 m
- Max. extension distance (Full HD)
- 300 m
- Max. extension distance (4K)
- 300 m
- Max. extension distance (8K)
- 300 m
- Extension over
- Fiber
- Extension cable
- Fiber multi mode (x1)
- Extension protocol
- Own
- 4K compatible
- Yes
- 8K compatible
- Yes
- Max. resolution @ 30Hz
- 7680 x 4320
- Max. resolution @ 60Hz
- 4096 x 2160, 7680 x 4320
- Chroma sampling
- 4:4:4
- Total bandwidth
- 32.4 Gb/s
- Loop-through
- No
- Video signal
- DisplayPort
- Supported features
- DDC, EDID, HDCP
- DisplayPort specification
- DisplayPort 1.4
- Power supply
- USB powered
- Included
- Two MPO adapters and caps
- DisplayPort version
- DisplayPort 1.4
- Warranty (years)
- 5
- EAN code
- 8716065539288
