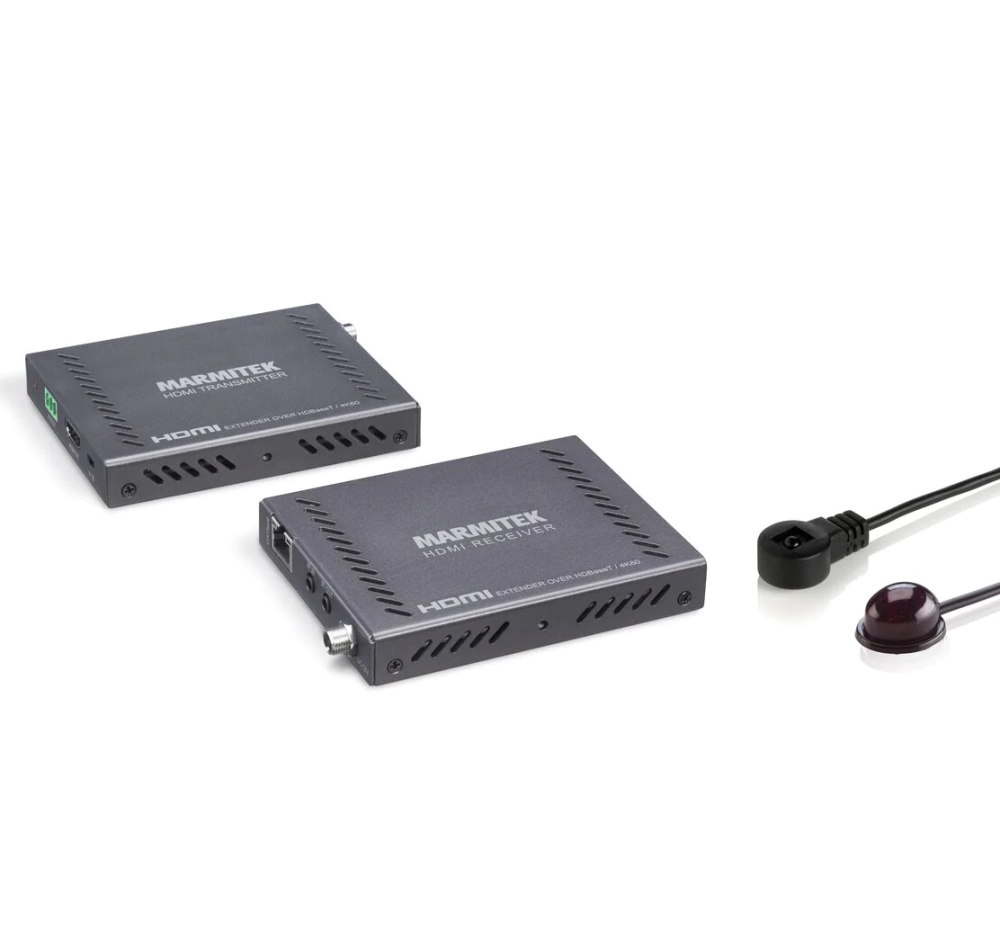

Marmitek HDMI extender - over 1 CAT 5e/6 cable - 4K Ultra HD - 3D - 40m (4K) - 70m (1080p) - 10.2 Gbps - infrared return
Varenummer
25008342
Marmitek HDMI extender - over 1 CAT 5e/6 cable - 4K Ultra HD - 3D - 40m (4K) - 70m (1080p) - 10.2 Gbps - infrared return
Spørg på levering
Spørg for leverandørlager
Varenummer
25008342
Marmitek HDMI extender - over 1 CAT 5e/6 cable - 4K Ultra HD - 3D - 40m (4K) - 70m (1080p) - 10.2 Gbps - infrared return
With this HDMI extender, you extend, over 1 CAT 5e/6 cable, the 4K60 signal from a TV set-top box, or other HDMI source, up to 40 metres to a TV at a desired location in your home. The MegaView 141 UHD offers the ideal solution if you do not want to or cannot use a long HDMI cable and still want to maintain the highest possible picture quality. You control a connected set-top box remotely using the infrared return function or CEC.
| Video/Audio | |
| Video resolution | 4k@60Hz, 1080p, 1080i, 720p,576p, 576i, 480p |
| HDMI standard | HDMI 2.0b, HDR, DVI, EDID, CEC and HDCP |
| Audio formats | DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, DTS 5.1, Dolby-AC3 and PCM stereo |
| 3D formats | 1080p@23.98/24 Hz, 720p@59.94/60/50 Hz |
| Colour formats | RGB and YCbCr 4:2:0 |
| Data transfer | HDBaseT |
| Clock frequency | 340 MHz |
| Video bandwidth | 10.2 Gbps |
| Transmitter | |
| AV input | 1x HDMI |
| UTP/ CATx connection | RJ45, EIA/TIA T568B |
| Dimensions (h x w x d) | 16 x 106 x 84 mm |
| Weight | 250 grams |
| Receiver | |
| AV output | 1x HDMI |
| UTP/Catx connection | RJ45, EIA/TIA T568B |
| Length CAT 5e/6 cable | 40m@4K/60 Hz, 70m@1080p |
| Dimensions (h x w x d) | 16 x 106 x 84 mm |
| Weight | 250 grams |
| IR receiver |
|
| Frequency range | 30-60 kHz |
| Infrared reception range | ± 6 metres |
| Connector | 3.5 mm jack plug |
| Cable length | 150 cm |
| General | |
| Ambient temperature | +0 to +70 °C |
| Ambient humidity | 10% to 85% |
| Power | 100-240 VAC, 50/60 Hz, 5V DC adapter |
