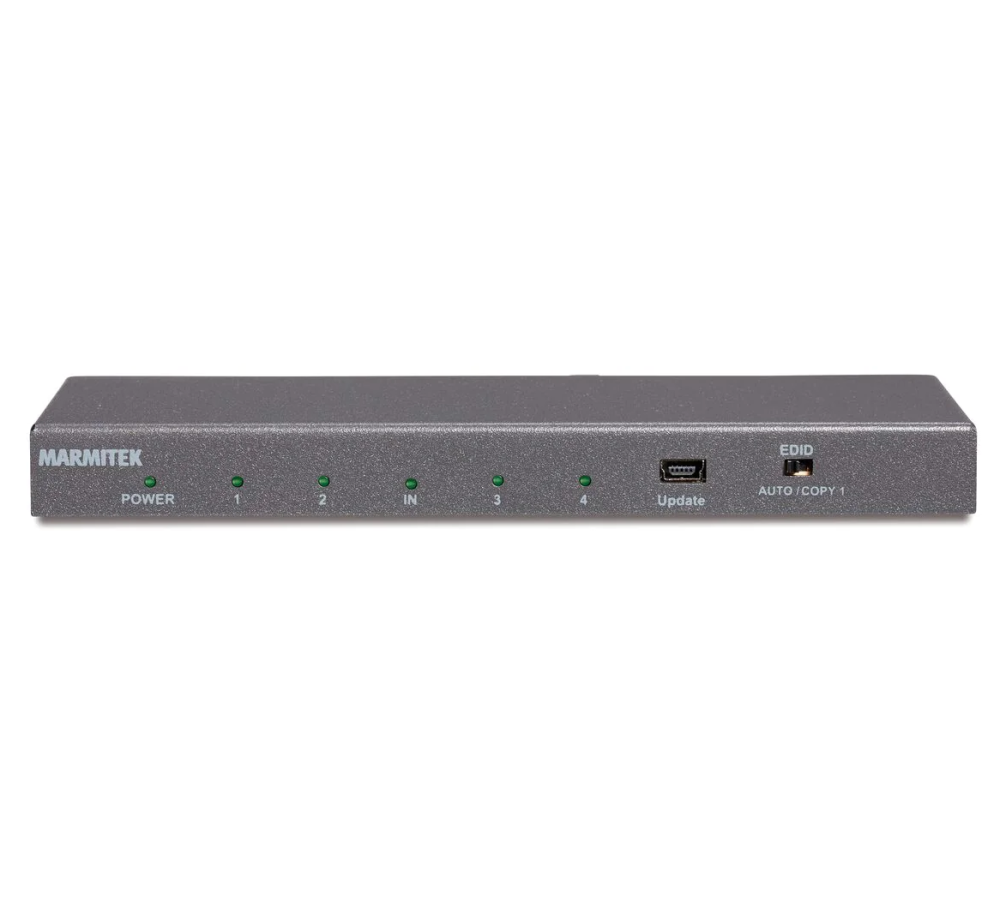

Marmitek HDMI splitter - 1 in / 4 out - 3D - 4K60 (4:4:4) - HDCP 2.2 - metal casing
This HDMI splitter 4K splits the HDMI signal from, for example, a set-top box to 4 TVs. Show the same presentation or film on the different TVs simultaneously. The Split 614 UHD 2.0 is suitable for Ultra HD 4K60 resolution (3840 x 2160/60 Hz), HDR, Deep Colour and 4:4:4 chroma colours. Determine the maximum video resolution on the HDMI output with the EDID switch.
Connections |
|
| AV input | 1 x HDMI |
| AV output | 4 x HDMI |
Video |
|
| HDTV resolution | Max. 2160@60Hz |
| PC resolution | Max. 2560 x 2048 |
| Video bandwidth | 18 Gbps |
| Clock frequency | 600 MHz |
| HDMI standard | HDMI 2.0b, HDR, EDID, DVI, Deep Color 36-bit and all 3D formats |
| HDCP standard | HDCP 1.4/2.2 |
| Colour formats | RGB and YCbCr 4:4:4, 4:2:0 of 4:2:2 |
| Colour depth | Max. 36-bit |
Audio |
|
| HDMI audio | DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3, DTS 5.1 and PCM stereo |
General |
|
| Dimensions (h x w x d) | 17 x 163 x 63 mm |
| Weight | 268 grams |
| Ambient temperature | +0 to +40°C |
| Humidity | 20% to 90% |
| Power | 100-240 VAC 50/60 Hz, 5 VDC adapter |
