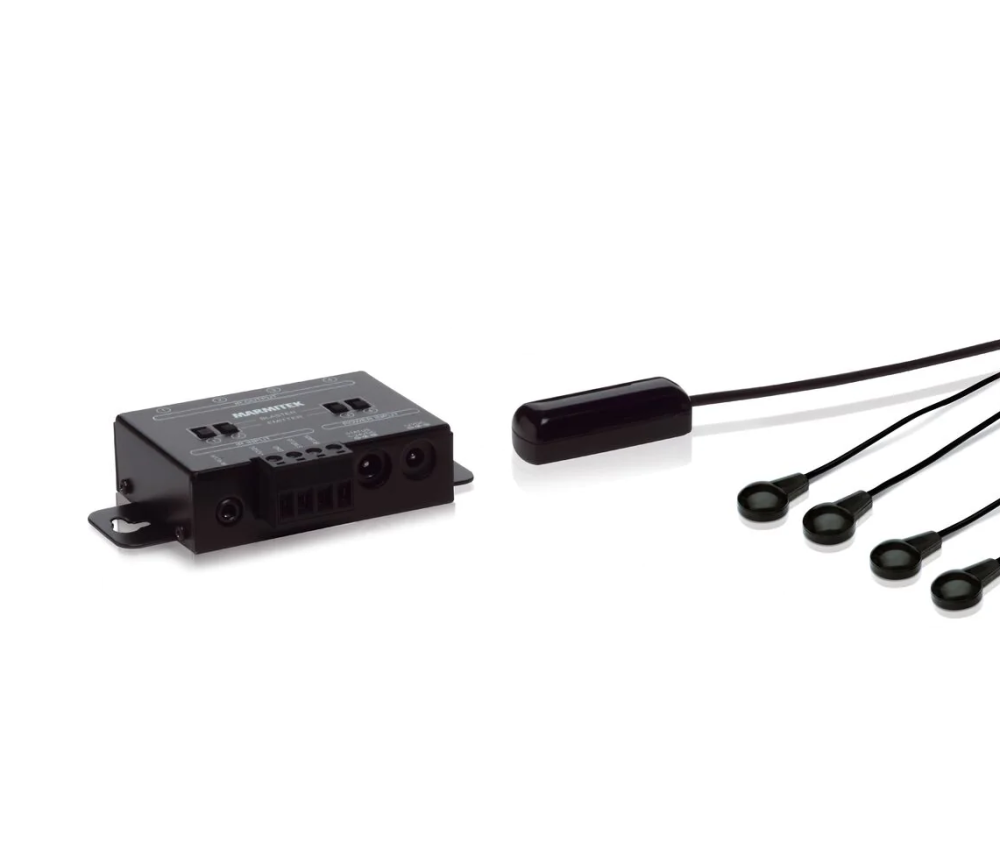

Marmitek Infrared extender - emitter (adhesive) LEDs - 4 devices - max. 300 m - extra small receiver
Varenummer
25008311
Marmitek Infrared extender - emitter (adhesive) LEDs - 4 devices - max. 300 m - extra small receiver
Spørg på levering
Spørg for leverandørlager
Varenummer
25008311
Marmitek Infrared extender - emitter (adhesive) LEDs - 4 devices - max. 300 m - extra small receiver
A professional infrared extender to operate up to 4 audiovisual devices from a large distance, using your own remote control. Operate a set-top box from up to 300 metres away. Use your existing remote control and a UTP cable (max. length 300 m). The IR Control 10 can be positioned virtually invisibly and has 4 emitter LEDs. Decide from your office what athletes in the gym get to watch on a TV
| IR receiver |
|
| IR frequency range | 30 - 60 kHz |
| IR reception range | ± 10 metres |
| IR reception angle | 90° (+45°/-45° from centre) |
| Cable length | 3 metres, extendable up to 300 metres |
| Infrared reception indication | ‘YES’ → purple indicator LED |
| Status indication | ‘YES’ → green indicator LED |
| Dimensions (h x w x d) | 11 x 40 x 13 mm |
| IR module |
|
| Power | 100-240 VAC 50/60 Hz, 12 VDC adapter |
| Power supply status connection | 5-24 VDC / 5-12 VAC plug, - 5.5. mm outside / + 2.1 mm inside (not included) |
| Dimensions (h x w x d) | 20 x 95 x 46 mm |
| IR input | 1 x 3.5 mm jack socket (stereo) 1 x screw connector (max. 6 receivers) |
| IR output | 4 x 3.5mm jack socket (mono), switchable for emitter/blaster LEDs |
| IR emitter |
|
| Infrared emitter (stick-on) LEDs | 300 cm with 3.5 mm jack plug (mono) |
