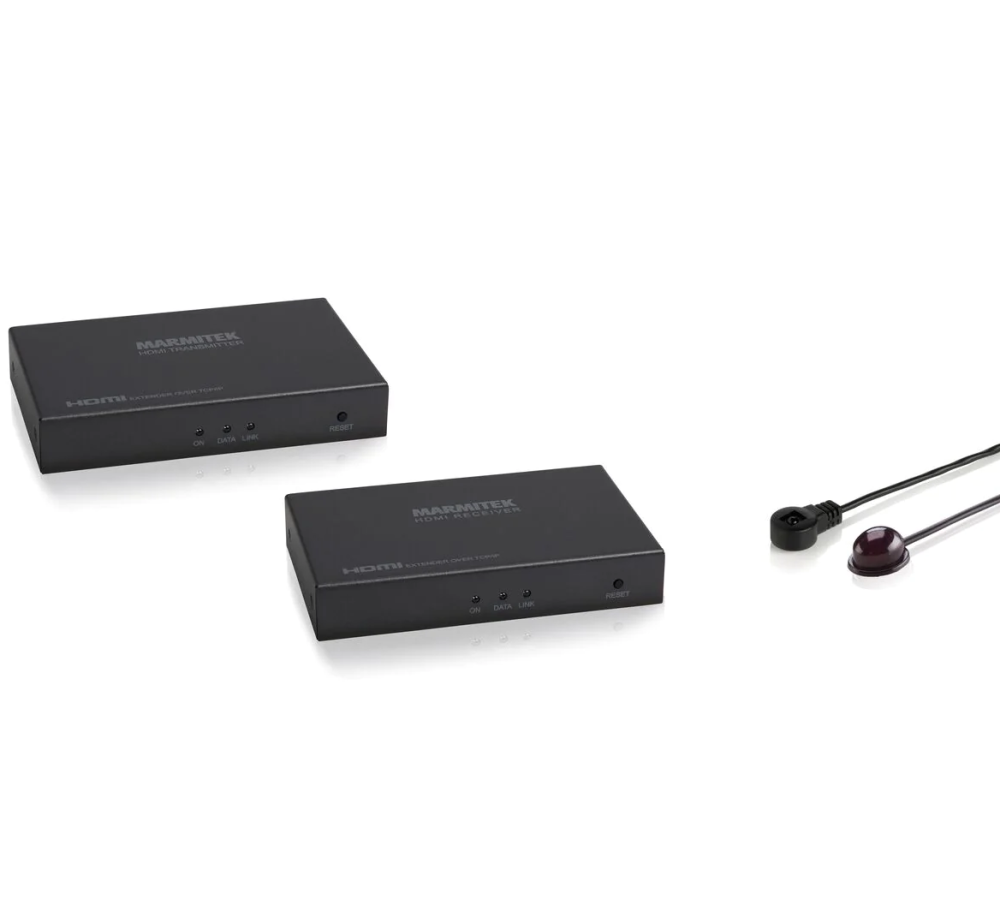

Marmitek HDMI extender - over 1 CAT 5e/6 cable or network (IP/LAN) - Full HD - 100-120m - infrared return - additional receivers
Varenummer
25008290
Marmitek HDMI extender - over 1 CAT 5e/6 cable or network (IP/LAN) - Full HD - 100-120m - infrared return - additional receivers
Spørg på levering
Spørg for leverandørlager
Varenummer
25008290
Marmitek HDMI extender - over 1 CAT 5e/6 cable or network (IP/LAN) - Full HD - 100-120m - infrared return - additional receivers
With this HDMI extender, you can easily connect TVs in multiple locations in the home to one set-top box located in one central location. Unique to the MegaView 91 is that you can connect additional receivers (sold separately) to this set. This way, you can extend the signal from a set-top box up to 120 metres to one or more televisions (>10) over 1 CAT 5e/6 cable. Use this HDMI extender in conjunction with your existing home network (LAN) including routers and switches.
| Video/Audio | |
| Video resolution | 1080p, 1080i, 720p,576p, 576i, 480p |
| HDMI standard | HDMI, DVI, EDID and HDCP 1.3 |
| Audio formats | PCM stereo |
| Data transfer | TCP/IP, H264 compression |
| Clock frequency | 225 MHz |
| Video bandwidth | 6.75 Gbps |
| Transmitter | |
| AV input | 1 x HDMI |
| AV output | 1 x HDMI (copy of input) |
| UTP/ CATx connection | RJ45, EIA/TIA T568B |
| Dimensions (h x w x d) | 23 x 135 x 84 mm |
| Weight | 330 grams |
| Receiver | |
| AV output | 1 x HDMI |
| UTP/Cat x connection | RJ45, EIA/TIA T568B |
| Length CAT 5e/6 cable | 120m@1080p |
| Dimensions (h x w x d) | 23 x 135 x 84 mm |
| Weight | 330 grams |
| IR receiver |
|
| Frequency range | 30-60 kHz |
| Infrared reception range | ± 6 metres |
| Connector | 3.5 mm jack plug |
| Cable length | 100 cm |
| General | |
| Ambient temperature | +0 to +70 °C |
| Ambient humidity | 10% to 85% |
| Power | 100-240 VAC 50/60 Hz, 5 VDC adapter |
