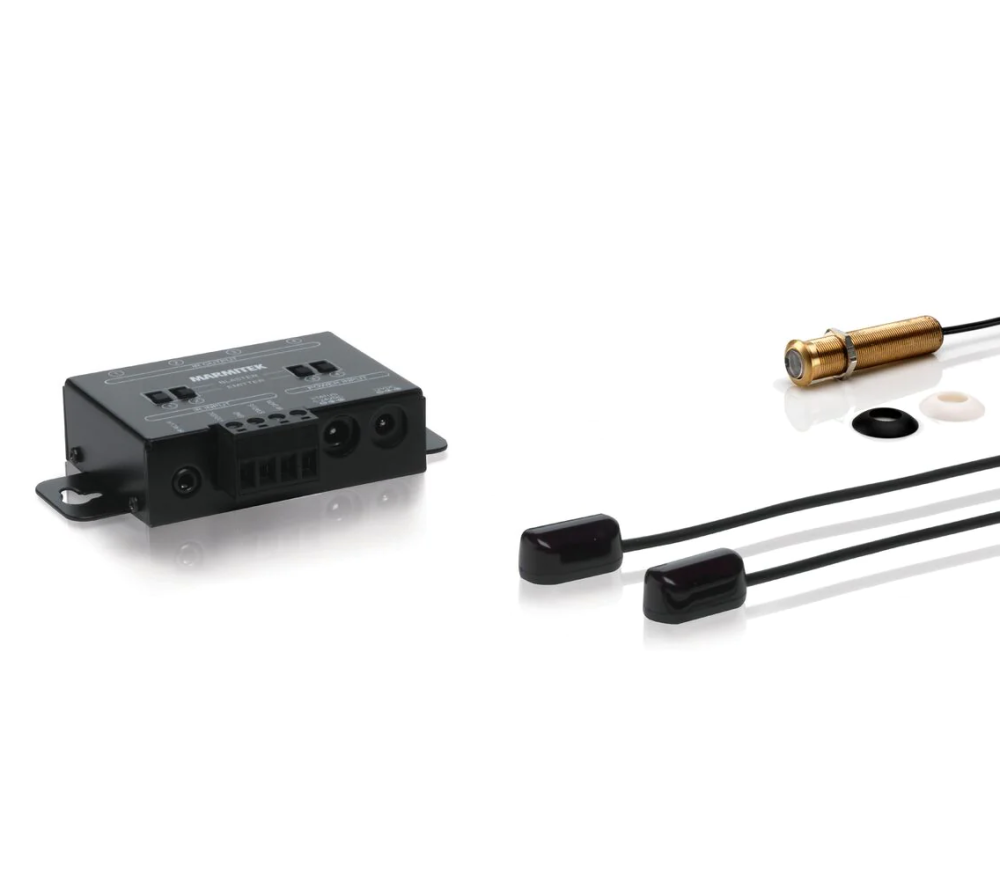

Marmitek Infrared extender - blaster - max. 300 m - surface mount receiver
Varenummer
25008175
Marmitek Infrared extender - blaster - max. 300 m - surface mount receiver
Spørg på levering
Spørg for leverandørlager
Varenummer
25008175
Marmitek Infrared extender - blaster - max. 300 m - surface mount receiver
A professional IR extender to operate an unlimited number of devices from a large distance, using your own remote control. Operate a set-top box from up to 300 metres away. Use your existing remote control and a UTP cable (max. length 300 m). The advantage of the IR Control 11 XTRA is that you can build the IR receiver into your TV cabinet. This makes the IR receiver completely invisible.
| IR receiver |
|
| IR frequency range | 30 - 60 kHz |
| IR reception range | ± 10 metres |
| IR reception angle | 60° (+30°/-30° from centre) |
| Cable length | 3 metres, extendable up to 300 metres |
| Infrared reception indication | ‘YES’ → purple indicator LED |
| Status indication | ‘YES’ → green indicator LED |
| Dimensions (h x w x d) | 14 x 52 mm, Ø 12 mm (drill size) |
| IR module |
|
| Power | 100-240 VAC 50/60 Hz, 12 VDC adapter |
| Power supply status connection | 5-24 VDC / 5-12 VAC plug, - 5.5. mm outside / + 2.1 mm inside (not included) |
| Dimensions (h x w x d) | 20 x 95 x 46 mm |
| IR input | 1 x 3.5 mm jack socket (stereo) 1 x screw connector (max. 6 receivers) |
| IR output | 4 x 3.5mm jack socket (mono), switchable for emitter/blaster LEDs |
| IR emitter |
|
| Infrared blaster LED | 300 cm with 3.5 mm jack plug (mono) with infra-red transmission range of 2 metres |
| Infrared emitter (stick-on) LEDs | 300 cm with 3.5 mm jack plug (mono) |
